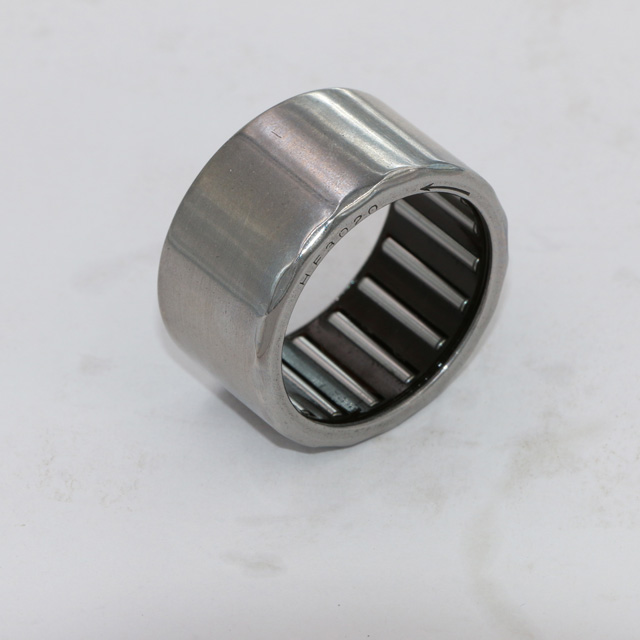

冲压外圈单向滚针离合器轴承HF1012
XSP 冲压外圈滚针轴承的外圈是用薄钢板精密冲压成形，结构空间小，是具有较大负荷容量。适用于安装空间受到限制和壳体孔不宜作为滚道的场合。且压入座孔后不必进一步轴向定位。该类滚针轴承一般不用外圈，如果需要使用外圈，可从样本中选取。且压入座孔后不必进一步轴向定位。该类滚针轴承压外圈滚针轴承对轴端轴承部位的密封极为有效。脂润滑滚针轴承长期使用 -20℃ -120℃
轴径 Shaft Diameter | 轴承型号 Bearing Designation | 外形尺寸 Boundary Dimensions(mm） | 传动力矩 Driving Torque Md | 极限转速 Limiting Speed（rpm） | 重量 Mass | |||||
(mm) | 现行代号Current Designation | 原代号 origination Designation | FW | D | C | min | (Nm) | n | nA | (kg) |
6 | HF0612 | - | 6 | 10 | 12 | 0.3 | 1.76 | 20000 | 13000 | 0.00300 |
8 | HF0812 | - | 8 | 12 | 12 | 0.3 | 3.15 | 16000 | 11000 | 0.00350 |
HFL0822 | DX-81212 | 8 | 12 | 22 | 0.3 | 3.15 | 16000 | 11000 | 0.00588 | |
10 | HF1012 | - | 10 | 14 | 12 | 0.3 | 5.3 | 14000 | 11000 | 0.00422 |
HFL1012 | 10 | 14 | 22 | 0.3 | 5.3 | 14000 | 11000 | 0.00712 | ||
12 | HF1216 | - | 12 | 18 | 16 | 0.3 | 12.2 | 10000 | 7000 | 0.01050 |
HFL1226 | 12 | 18 | 26 | 0.3 | 12.2 | 10000 | 7000 | 0.01800 | ||
14 | HF1416 | - | 14 | 20 | 16 | 0.3 | 17.3 | 8500 | 7000 | 0.01230 |
HFL1426 | - | 14 | 20 | 26 | 0.3 | 17.3 | 8500 | 7000 | 0.02048 | |
16 | HFL1616 | - | 16 | 22 | 16 | 0.3 | 20.5 | 8500 | 7000 | 0.01250 |
HFL162224 | - | 16 | 22 | 24 | 0.3 | 20.5 | 8500 | 7000 | 0.01900 | |
HFL1626 | - | 16 | 22 | 26 | 0.3 | 20.5 | 8500 | 7000 | 0.02179 | |
19.05 | RC121610FS | - | 19.05 | 25.4 | 15.88 | 0.3 | 22.1 | 0.01770 | ||
HF202611 | - | 20 | 26 | 11 | 0.3 | 16 | 6500 | 6500 | 0.01104 | |
20 | HF2012 | - | 20 | 26 | 12 | 0.3 | 17 | 6500 | 6500 | 0.01222 |
HF2016 | - | 20 | 26 | 16 | 0.3 | 28.5 | 6500 | 6500 | 0.02180 | |
HFL2026 | - | 20 | 26 | 20 | 0.3 | 28.5 | 0.02561 | |||
25 | HF2520 | - | 25 | 32 | 20 | 0.3 | 66 | 5000 | 5000 | 0.03030 |
RC-162108-FS | - | 25.4 | 33.34 | 12.7 | 0.3 | 30 | 5000 | 5000 | 0.01935 | |
25.4 | RC-162110-FS | - | 25.4 | 33.338 | 15.88 | 0.3 | 67 | 5000 | 5000 | 0.03040 |
RCB-162117 | - | 25.4 | 33.34 | 26.99 | 0.3 | 67 | 5000 | 5000 | 0.05170 | |
30 | HF3016 | - | 30 | 37 | 16 | 0.3 | 70 | 4000 | 4000 | 0.02840 |
HF3030 | - | 30 | 37 | 20 | 0.3 | 90 | 4000 | 4000 | 0.03490 | |
35 | HF3520 | - | 35 | 42 | 20 | 0.3 | 121 | 3700 | 3700 | 0.04140 |
